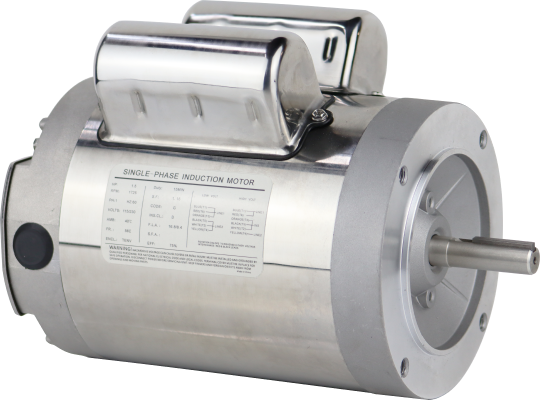

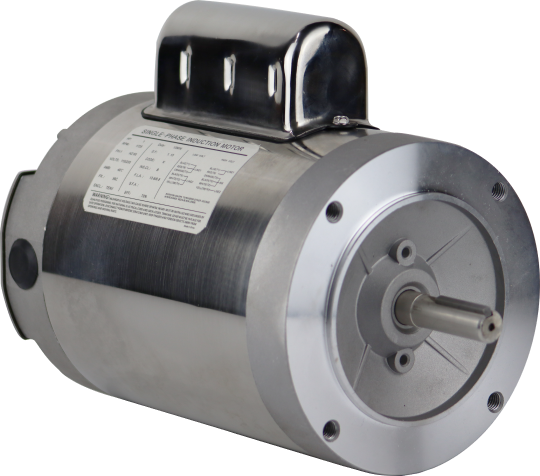

BLN Series Boat Lift Motor
TENV, Short time duty
- Stainless steel housing and hardware
- Aluminum flange and end bell
- TENV
- Drain hole in front and at back
- 15 minute duty
- CSA C/US certification to US and Canadian standards
Specifications
| CAT No. | HP | RPM | Frame | VOLTAGE | HZ | Capacitor | Data Sheet |
|---|---|---|---|---|---|---|---|
| BLN12456C | 1/2 | 1800 | 56C | 115/230 | 60 | CS/ | |
| BLN34456C | 3/4 | 1800 | 56C | 115/230 | 60 | CS/ | |
| BLN01456C | 1 | 1800 | 56C | 115/230 | 60 | CS/ | |
| BLN1.5456C | 1.5 | 1800 | 56C | 115/230 | 60 | CS/CR |
